This post will discuss the key considerations for proper installations of Chockfast Epoxy Grouts and Chocks.
Epoxy grouting systems are relied on every day to support critical rotating and precisely aligned equipment. Products like Chockfast Red and Chockfast Orange are engineered to deliver exceptional load transfer, vibration resistance, and long-term dimensional stability. But as most experienced installers know, even the best non-shrink epoxy grout cannot overcome poor installation practices.
Successful epoxy grouting isn’t about rushing to pour material, it’s about controlling the process from start to finish. In the field, most issues with non-shrink construction grout installations can be traced back to three essential Keys for Success.
Key #1: Getting the Material Placed Effectively Under the Equipment
The first key to a successful epoxy grout or chock installation is making sure the material fully and evenly migrates beneath the equipment baseplate or soleplate.
While epoxy grouts are designed to flow, they are not free-flowing or self-leveling liquids. Their controlled viscosity is what makes epoxy grouting reliable over time, but it also means installers must guide the material where it needs to go.
What Helps Ensure Proper Placement
- Solid, sealed formwork
Forms must be rigid and leak-free to maintain the pressure needed to move material under the equipment. - Use of head boxes

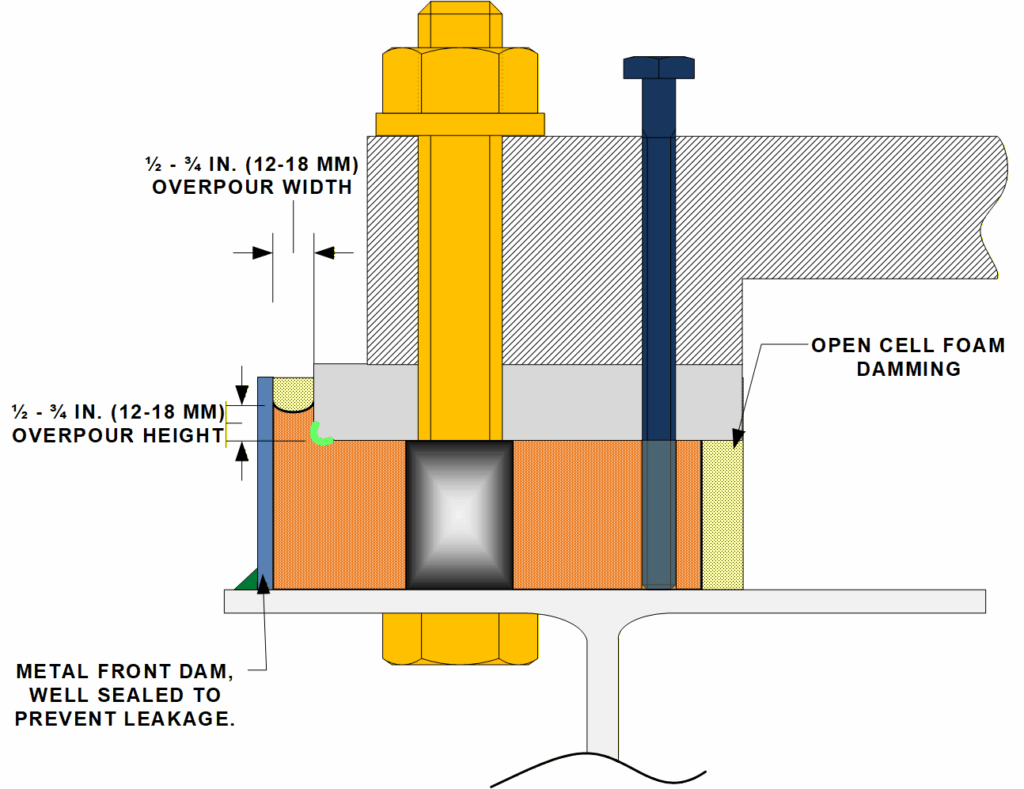

Head boxes and properly designed overpours create hydrostatic pressure that helps flow materials like Chockfast Orange into tight clearances. Here is a drawing showing the rough design of ta headbox for Chockfast epoxy grouts.
Why does this matter? Because epoxy grout is a structural element. If the material doesn’t fully contact the underside of the equipment, it can’t properly transfer loads, regardless of how strong the grout is on paper.
Key #2: Getting the Air Out of the Installation Area
Air is one of the most common – and most overlooked – enemies of successful epoxy grouting.
Entrapped air creates voids that reduce effective bearing area and can lead to stress concentrations, vibration issues, and long-term reliability problems. This is especially critical when installing precision machinery supported by non-shrink epoxy grout.
Where Trapped Air Comes From
- Pouring from multiple sides
- Inadequate venting in baseplates or soleplates
- Insufficient placement pressure
How to Keep Air Out

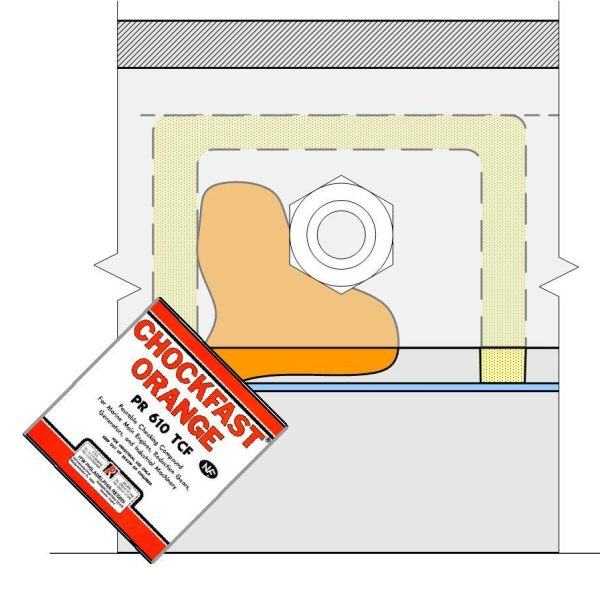

Pour from one side only so advancing epoxy pushes air ahead of it:
Even small voids beneath equipment can compromise load transfer. Over time, those voids can show up as alignment instability or increased vibration – issues no one wants to troubleshoot after startup.
Key #3: Ensuring the Epoxy Cures Properly
The final key for success is often the most underestimated: allowing the epoxy to cure exactly as designed.
Products like Chockfast and other high-performance non-shrink construction grouts achieve their strength through a chemical curing process. If curing conditions are compromised, the installation may never reach its intended mechanical properties, even if it looks fine on the surface.
Factors That Affect Proper Cure
- Material, substrate, and ambient temperature
- Accurate mix ratios and thorough mixing
- Protection from vibration or loading during cure
- Following manufacturer-recommended cure times
Cold temperatures can slow or stop the cure process, while high temperatures can reduce working time and increase internal stresses. Just as important, equipment should not be aligned, torqued, or operated until the epoxy has reached the required cure strength.
Cure time isn’t downtime – it’s part of the installation.
Final Thoughts: Process Control Drives Performance
Successful epoxy grouting doesn’t happen by accident. It happens when installers focus on the right details at the right time.
By concentrating on these three Keys for Success:
- Effective material placement under the equipment
- Eliminating air from the installation area
- Ensuring the epoxy cures properly
You set the foundation for long-term machinery reliability and performance.
At the end of the day, epoxy grout systems like Chockfast Orange are more than gap fillers, they are structural components. Treating the installation process with the same discipline as the equipment itself is what separates a good installation from a great one.
By: Christopher Matthews-Ewald, Senior Applications Engineer
